Analogue interface module for up to ten sensors
Product Overview

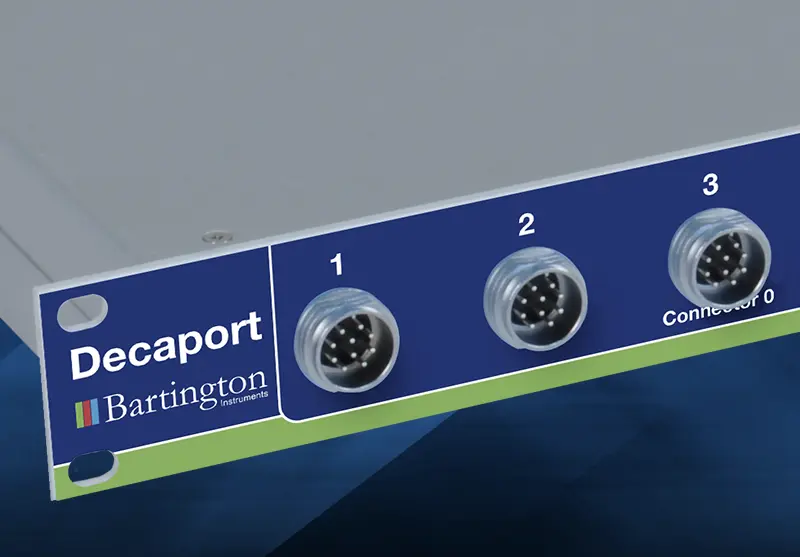

Decaport is an analogue interface module with 30 input channels, allowing connection of up to 10 three-axis sensors.
It is primarily intended to support our magnetic field sensors, but incorporates programmable features to support a wide range of sensor types, such as depth, pressure, and e-field sensors.
Multiple Decaports can be mounted in a DAS1 or DAS3.
It is software-configurable for single-ended or differential analogue sensor inputs, anti-aliasing filters, frequency response and sensor supply voltage.
It also provides power when used with the Bartington® Instruments range of sensors.
Key Features
- Single-ended analogue output to PXIe Unit
- Option to monitor the sensor power supply voltage, current and electrical leakage
- Ability to activate the magnetometer test function (when available on magnetometer)
- Comprehensive ESD surge protection on the sensor input
- Standard 19-inch rack-mounting
- Operates with sensor cables up to 1km long (sensor dependent)
