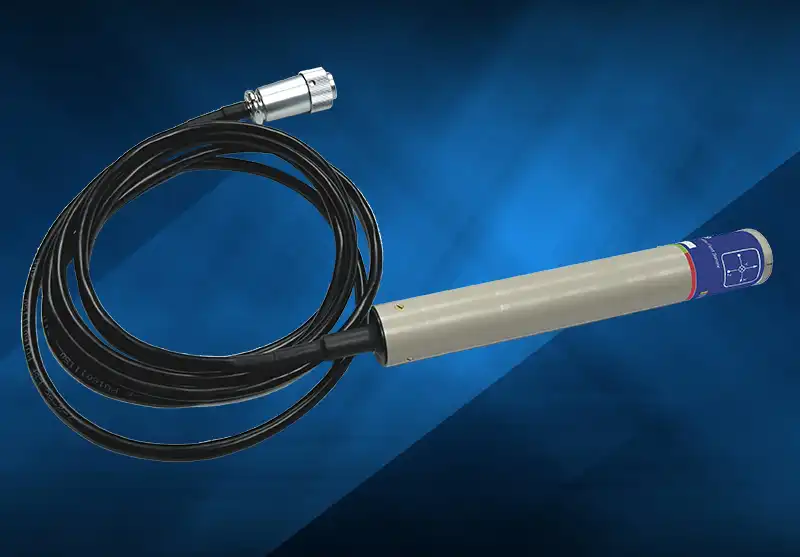

Wide bandwidth three-axis fluxgate magnetometer
An export licence is required for shipping this product outside the UK.
For further details email sales@bartington.com.
Product Overview
This wide bandwidth fluxgate magnetometer offers measurements from DC to 12kHz of field strengths up to ±100μT.
Creation of eddy currents is prevented by a non- conductive cylindrical enclosure. A 2.5m shielded cable removes the sensor connector from proximity to fluxgates, while the three concurrent fluxgate elements minimise the effect of high magnetic field gradients.
Key Features
- Wide bandwidth – DC to 12kHz
- Noise level <20pTrms/√Hz at 1Hz
- ±100µT measuring range
- Concurrent axes (single point of intersection)
- Environmentally sealed to IP65
Applications
- Time-domain electromagnetics (TDEM)
- Magnetotellurics (MT)
- EMC Interferences measurement
- Unexploded ordnance (UXO) detection
