Unpackaged low-noise three-axis magnetometer for aerospace
An export licence is required for shipping this product outside the UK.
For further details email sales@bartington.com.
Product Overview
Mag669 is a low noise fluxgate magnetometer designed to meet the environmental needs of aerospace.

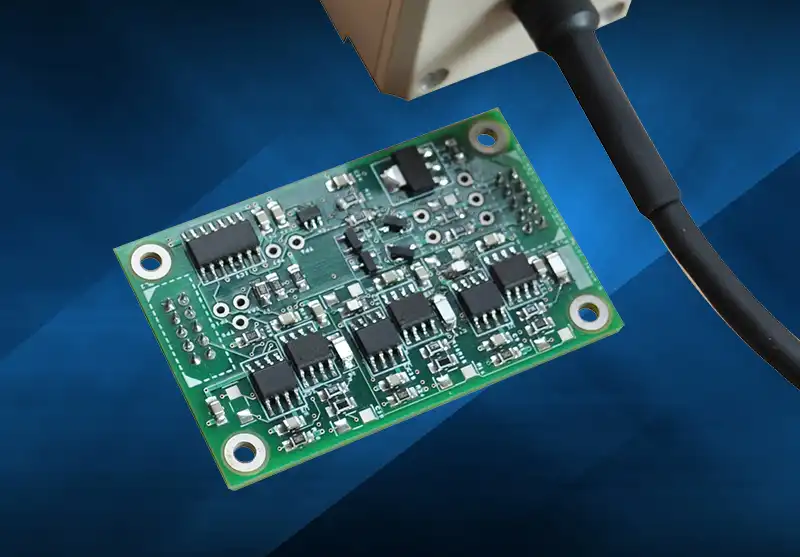

It has two-part construction, consisting of a sensor head assembly and unpackaged electronics, which can be integrated into existing systems to save space and weight. The sensing head has an integral cable.
With a full-scale range of ±75μT and low noise characteristics, this sensor is ideally suited to applications such as vector compensation in airborne magnetometry.
Key Features
- ±75μT full-scale range
- -55ºC to +55ºC continuous operating temperature range
- Low noise: <5pTrms/√Hz at 1Hz
- Concurrent sensing axes
Applications
- Magnetic Anomaly Detection
- Navigation
- Vector compensation in airborne magnetometry
