Magnetometer power supply and display
Some product images show accessories, which are available separately.
Product Overview

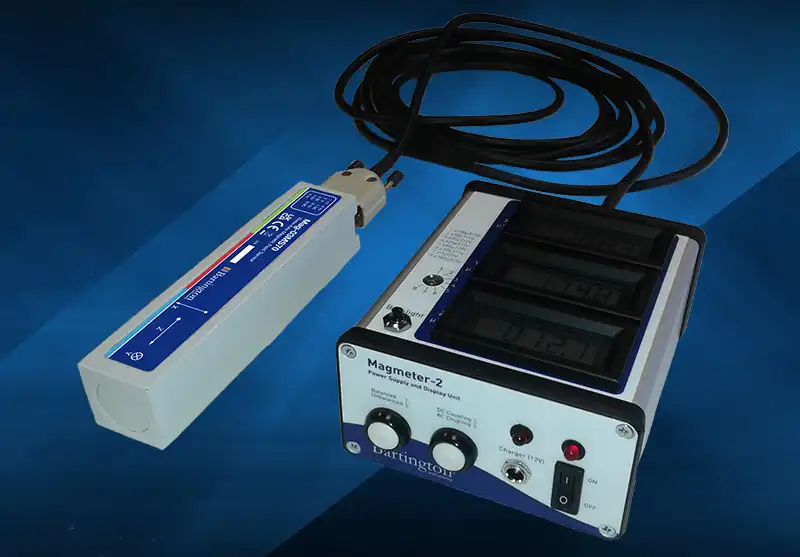

Magmeter-2 enables rapid monitoring of magnetic fields filtered readings of a magnetometer’s X, Y and Z outputs on an LCD display panel.
This unit also provides analogue outputs of each axis for the display or precise acquisition of magnetic field data using third party equipment. It’s battery powered to facilitate fieldwork and to reduce internal noise for precision measurements.
Low-pass filtering (9.5kHz) is applied to all inputs prevents the excitation signal of the magnetometer from affecting the measurement, while high-pass filtering (0.1Hz) is selectable when AC measurements are preferred.
Key Features
- 10nT resolution for ranges up to ±100μT; 100nT resolution for ranges up to ±1000μT
- Low-pass filtering (9.5kHz) applied to all sensor outputs

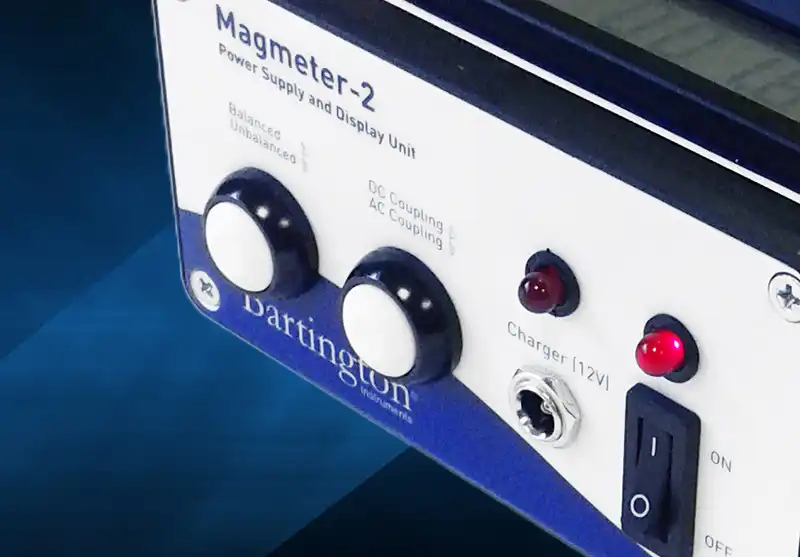

- High-pass filter (0.1Hz) selectable via a front panel switch
- Powered by internal rechargeable batteries
- Supplied with mains AC charging adaptor to enable continuous operation
